Ford Transit Connect 200 L1 1.0 EcoBoost Trend

Ford Transit Connect

Ford Transit Connect 200 L1 1.0 EcoBoost Trend Interior

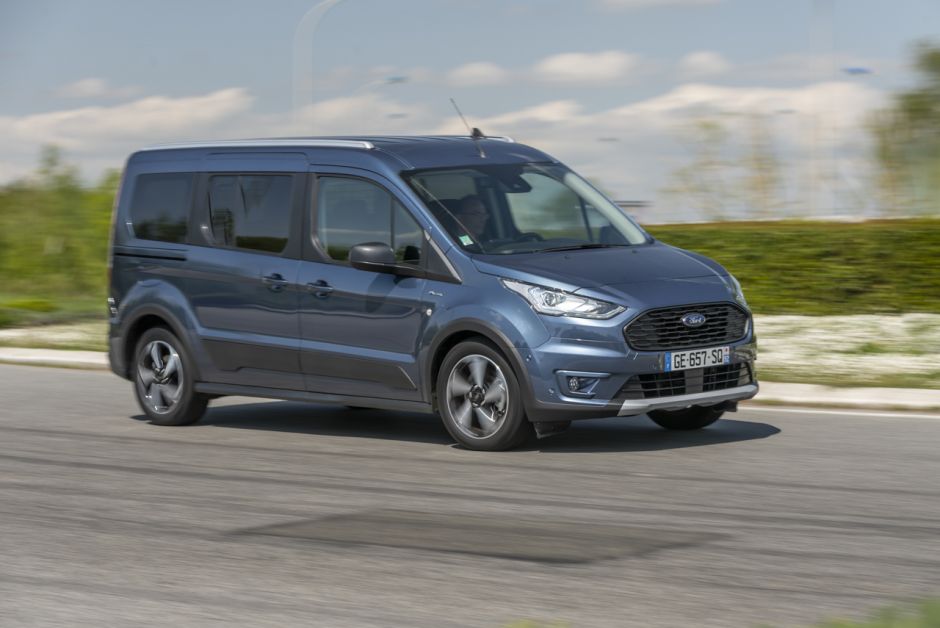

Thumbnail of Ford Transit Connect 200 L1 1.0 EcoBoost Trend Front view

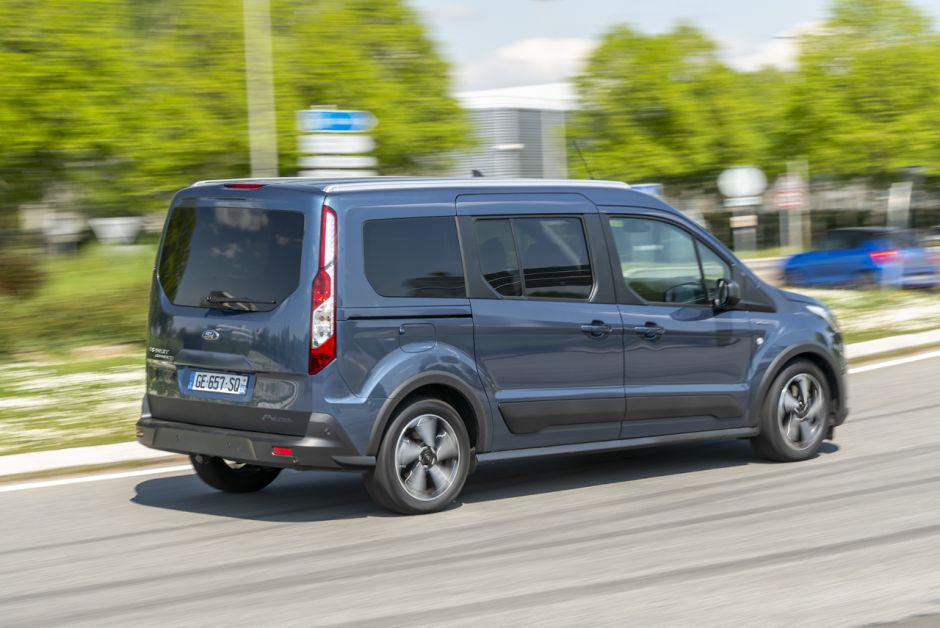

Thumbnail of Ford Transit Connect 200 L1 1.0 EcoBoost Trend Rear view

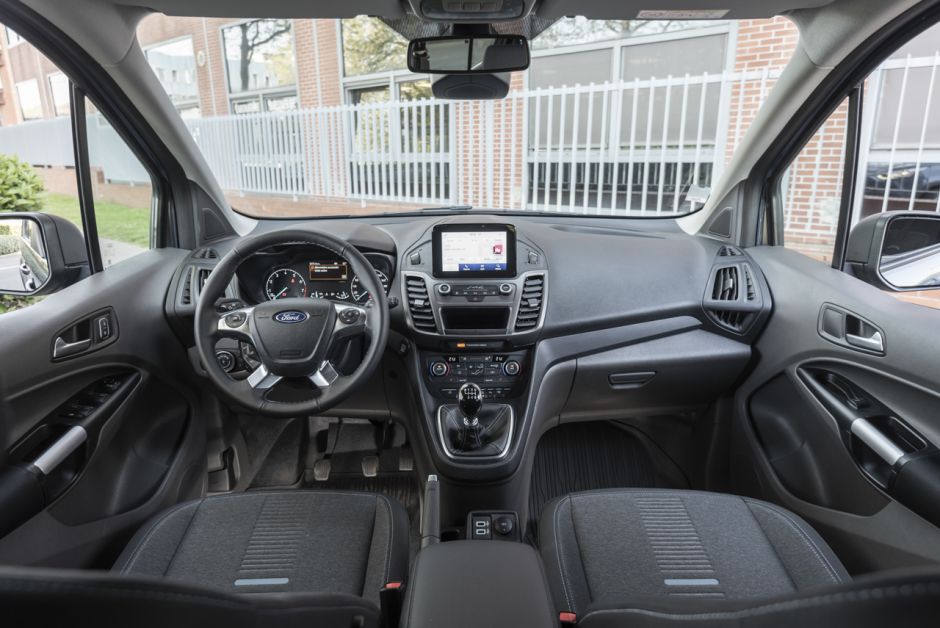

Thumbnail of Ford Transit Connect 200 L1 1.0 EcoBoost Trend Interior

Key Information

Engine Type fuel engine

Fuel Type gasoline

Transmission Type manual

Body Type van

Introduction february 2018

Number of Doors 3

Transmission Stages 6

Number of Seats 2

Max Torque (nm) 170

Engine Capacity 995 cc

Cylinders 3

Valves Per Cylinder 4

Fuel Tank Capacity 60 l

Top Speed 0 km/h

Acceleration 0-100 0 s

Drive Wheel front

About Ford Transit Connect

The Ford Transit Connect is a van with 3 doors, a manual 6-stage transmission, and seating for 2. It is powered by a fuel engine with a gasoline fuel type, 74kW of power, and a 995cc engine capacity. It has a turbo, a 60l fuel tank capacity, and a top speed of nokm/h. It has an acceleration of 0-100 of nos, a crash test result of ****, and brake assist, stability control, traction control, hill assist, central door locking, electric windows (front), air conditioning (automatically), and a start/stop system. It has a height of 1844mm, a length of 4425mm, and a width of 1835mm.

Ford Transit Connect parameters:

General

Brand:	Ford
Model:	Transit Connect 200 L1 1.0 EcoBoost Trend
Price:	14,395 €
Segment:	n (delivery van)
Introduction:	february 2018

Electric Engine

Drive

Body Type:	van
Transmission Type:	manual
Engine Type:	fuel engine
Fuel Type:	gasoline
Drive Wheel:	front
Number of Seats:	2
Number of Doors:	3
Fuel Tank Capacity:	60 l
Transmission Stages:	6
Top Speed:	no
Acceleration 0-100:	no
Combined Consumption:	6 l/100 km
Co2 Emissions (g/km):	146
Energy Label:	e

Engine

Power:	74 kW
Engine Capacity:	995 cc
Total Max. Power (hp):	100
Max Torque (nm):	170
Cylinders:	3
Valves Per Cylinder:	4
Bore X Stroke:	71,9 x 82,0 mm
Compression Ratio:	10,0 :1
Power (hp):	100
Max. Power Rpm:	6000
Max Torque Rpm:	1400
Fuel System:	direct injection
Valve Actuation:	dohc
Catalyst:	regular

Chassis

Front Suspension:	coil springs
Rear Suspension:	leaf springs
Front Stabilizer:	yes
Rear Stabilizer:	yes
Front Brakes:	ventilated discs
Rear Brakes:	drums
Front Tire Size:	205/60r16
Rear Tire Size:	205/60r16
Turning Circle:	11,0 m

Transmission Details

Final Drive:

4,27:1

Weights and Sizes

Curb Weight:	1376 kg
Max. Payload:	714 kg
Max. Permissible Mass:	2090 kg
Cargo Capacity:	2900 l
Height Of Lift Threshold:	626 mm
Length:	4425 mm
Width:	1835 mm
Height:	1844 mm
Wheelbase:	2662 mm

Safety

Brake Assist:	yes
Stability Control:	yes
Traction Control:	yes
Hill Assist:	yes
Crash Test Result:	****
ABS:	yes
Brake Force Distribution:	yes
Drivers Airbag:	yes
Cooling Water Temperature Gauge:	yes
Front Fog Lights:	yes

Comfort

Keyless Entry/start:	yes
Audio Controls on Steering Wheel:	yes
Bluetooth:	yes
Electric Windows:	yes(front)
Lumbar Support Seat:	yes(driver)
Central Door Locking:	yes
Power Steering:	yes
Air Conditioning:	yes(manually operated)
Height Adjustment Seat:	yes(driver)
Adjustable Steering Wheel:	yes(height and depth)
Outside Temperature Gauge:	yes
Board Computer:	yes
Audio System:	yes
Digital Radio (DAB):	yes (since 7/2020)
Audio Input:	yes(aux and usb)
Interval Wiper (s):	yes
Electric Mirrors:	yes(and heated)
Daytime Running Lights:	yes
Reading Lamp(s):	yes(front)

Key features:

Audio Controls on Steering Wheel:
Interval Wiper (s):
Electric Mirrors:	(and heated)
